Thông số kỹ thuật

  • Woven Kevlar : √
  • Crossover Tuning : √
  • Nautilus Tapering Tube : √
  • Flowport :  √
  • Technical features
    • Decoupled Double Dome aluminium tweeter with
    • Nautilus™ tube loading
    • Kevlar® brand fibre cone bass/midrange
    • Flowport™
  • Description: 2-way vented-box system
  • Drive units
    • 1x ø25mm (1 in) aluminium dome high-frequency
    • 1x ø165mm (6.5 in) woven Kevlar® cone bass /midrange
  • Frequency range: -6dB at 45Hz and 50kHz
  • Frequency response: 52Hz - 22kHz ±3dB on reference axis
  • Dispersion
    • Within 2dB of reference response
    • Horizontal: over 60º arc
    • Vertical: over 10º arc
  • Sensitivity: 87dB spl (2.83V, 1m)
  • Harmonic distortion
    • 2nd and 3rd harmonics (90dB, 1m)
    • <1% 95Hz - 22kHz
    • <0.5% 140Hz - 20kHz
  • Nominal impedance: 8Ω (minimum 3.5Ω)
  • Crossover frequencies: 4kHz
  • Recommended amplifier power: 25W - 100W into 8Ω on unclipped programme
  • Max. recommended cable impedance: 0.1Ω
  • Dimensions
    • Height: 345mm (13.5 in)
    • Width: 190mm (7.5 in)
    • Depth: 324mm (12.8 in)
  • Net weight: 6.8kg (14.9 lb)
Mã sản phẩm: 115812
Tình trạng: Còn trong kho

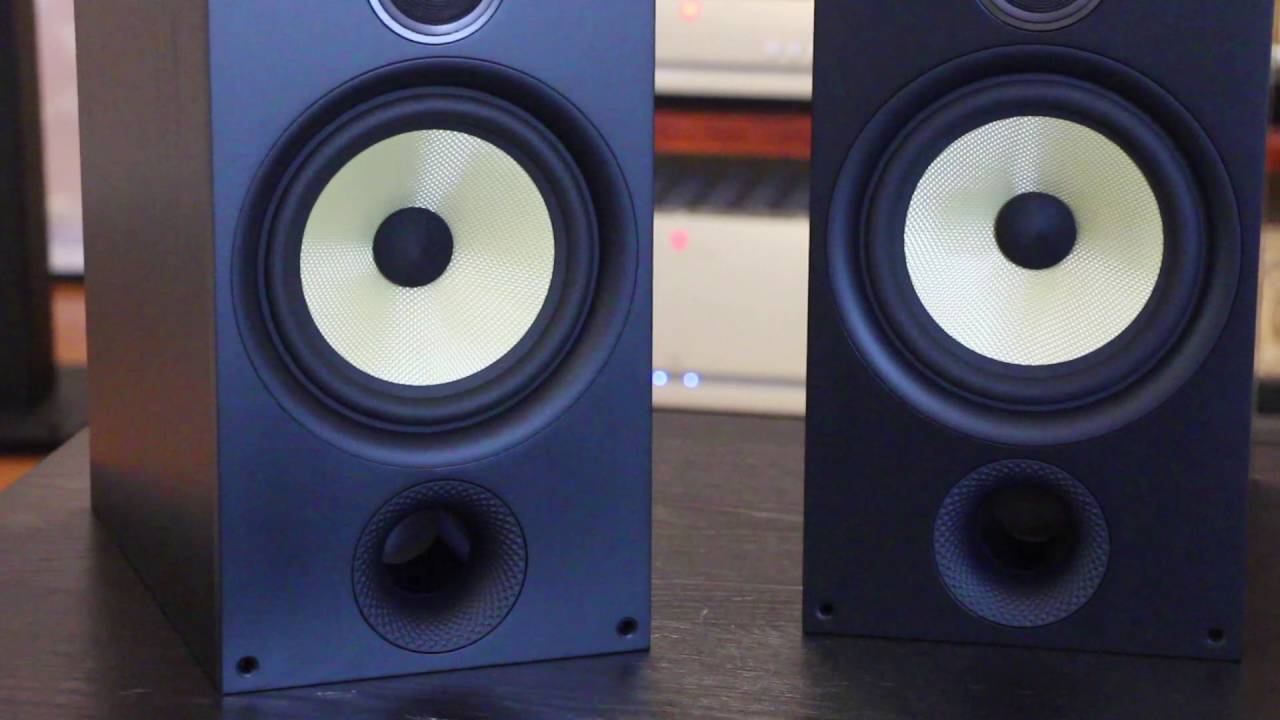

Loa bookshelf B&W 685 S2 Black chính hãng

Liên hệ
- +
