Thông số kỹ thuật

Amplifier Section

  • Power output (Front L/R / Center / Surround L/R)
    • 155 W/Ch
    • (6 Ω, 1 kHz, 10% THD, 1 channel driven)
    • 135 W/Ch
    • (6 Ω, 1 kHz, 1% THD, 1 channel driven, IEC)
  • THD+N (Total Harmonic Distortion + Noise): 0.08% (20 Hz–20 kHz, Half Power)
  • Input sensitivity and impedance: 200 mV rms/47 kΩ (Line)
  • Frequency response 10 Hz–100 kHz/+1 dB, -3 dB (Direct Mode)
  • Tone control
    • ±10 dB, 20 Hz (Bass)
    • ±10 dB, 20 kHz (Treble)
  • Signal-to-noise ratio 109 dB (Line, IHF-A)
  • Speaker impedance 4 Ω–16 Ω

Tuner Section

  • Tuning frequency range
    • FM: 87.5 MHz–108 MHz
    • AM:
      • 530 kHz–1,710 kHz
      • 522 kHz–1,611 kHz
  • FM/AM preset memory 40 Stations

General

  • Power supply AC 220–240 V~, 50/60 Hz
  • Power consumption 465 W
  • Standby power consumption: 0.2 W
  • Dimensions (W x H x D) 435mm x 160mm x 328mm
  • Weight 8.2 kg
Mã sản phẩm: 117250
Tình trạng: Còn trong kho

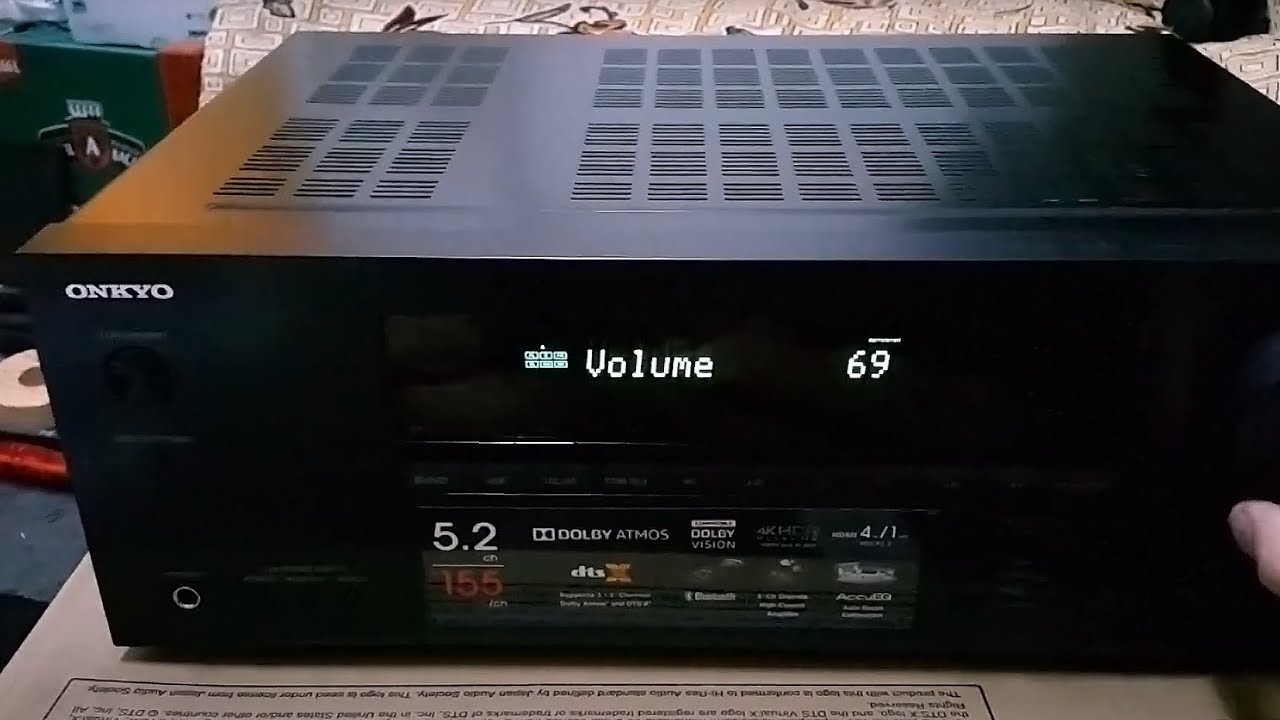

Amply xem phim ONKYO TX-SR393 chính hãng

Liên hệ
- +
