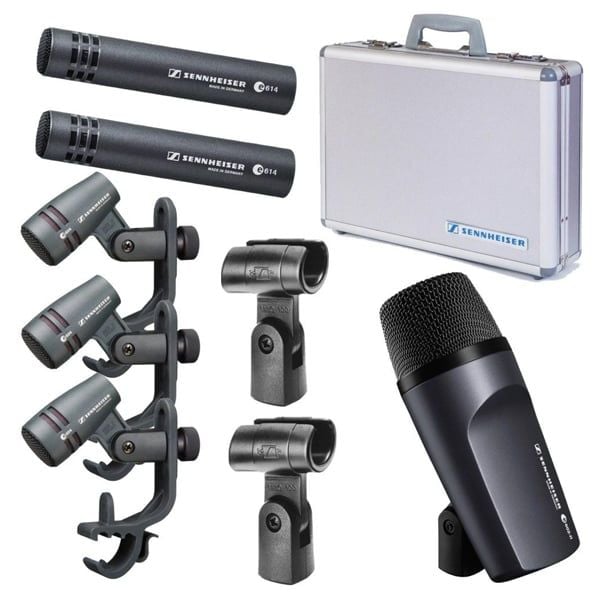

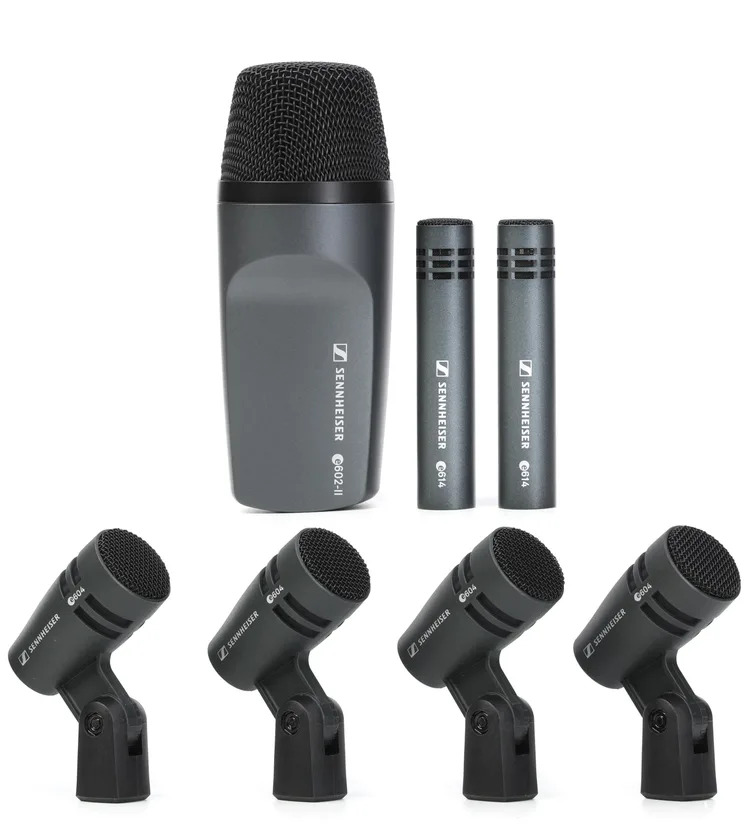

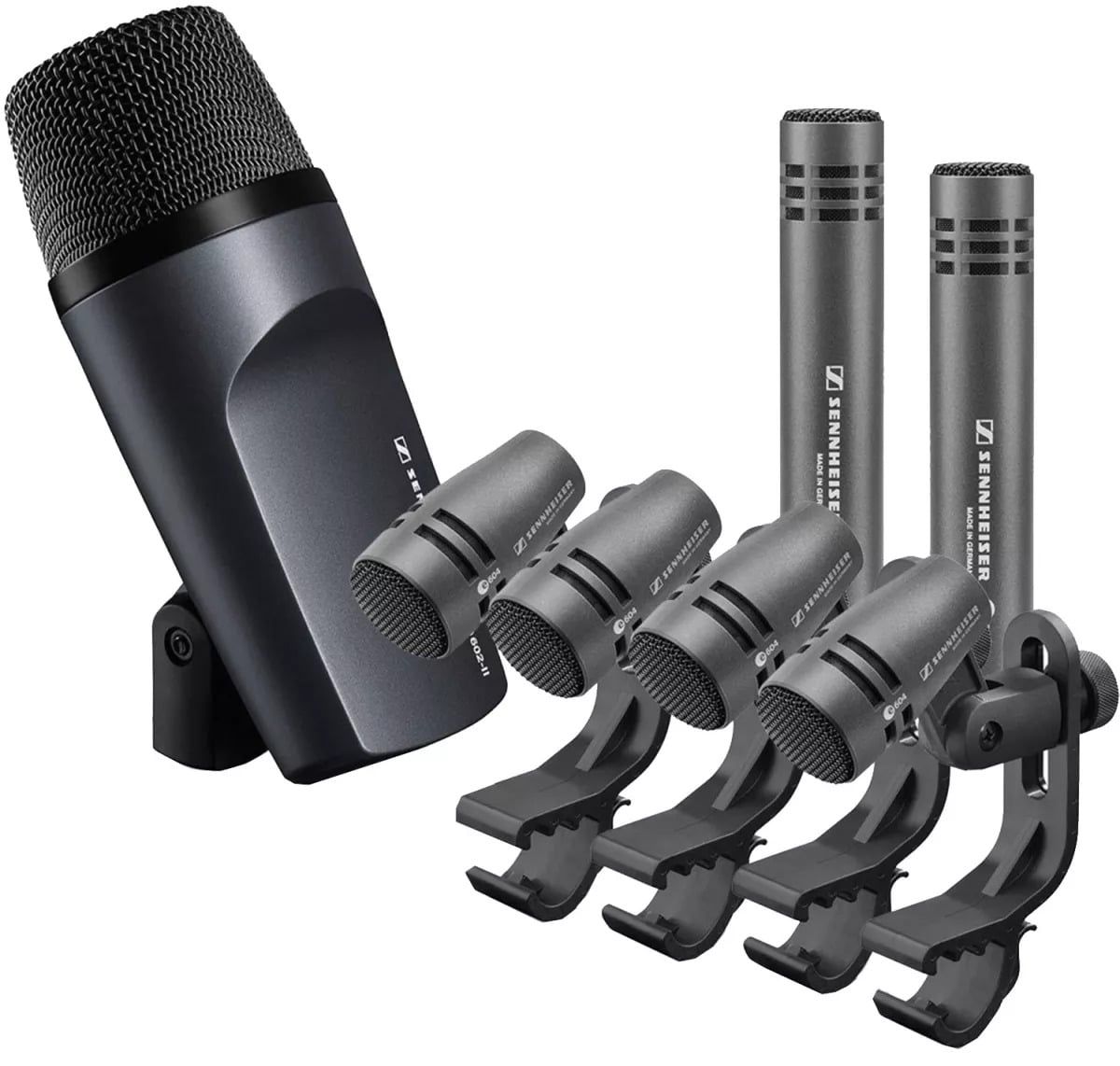

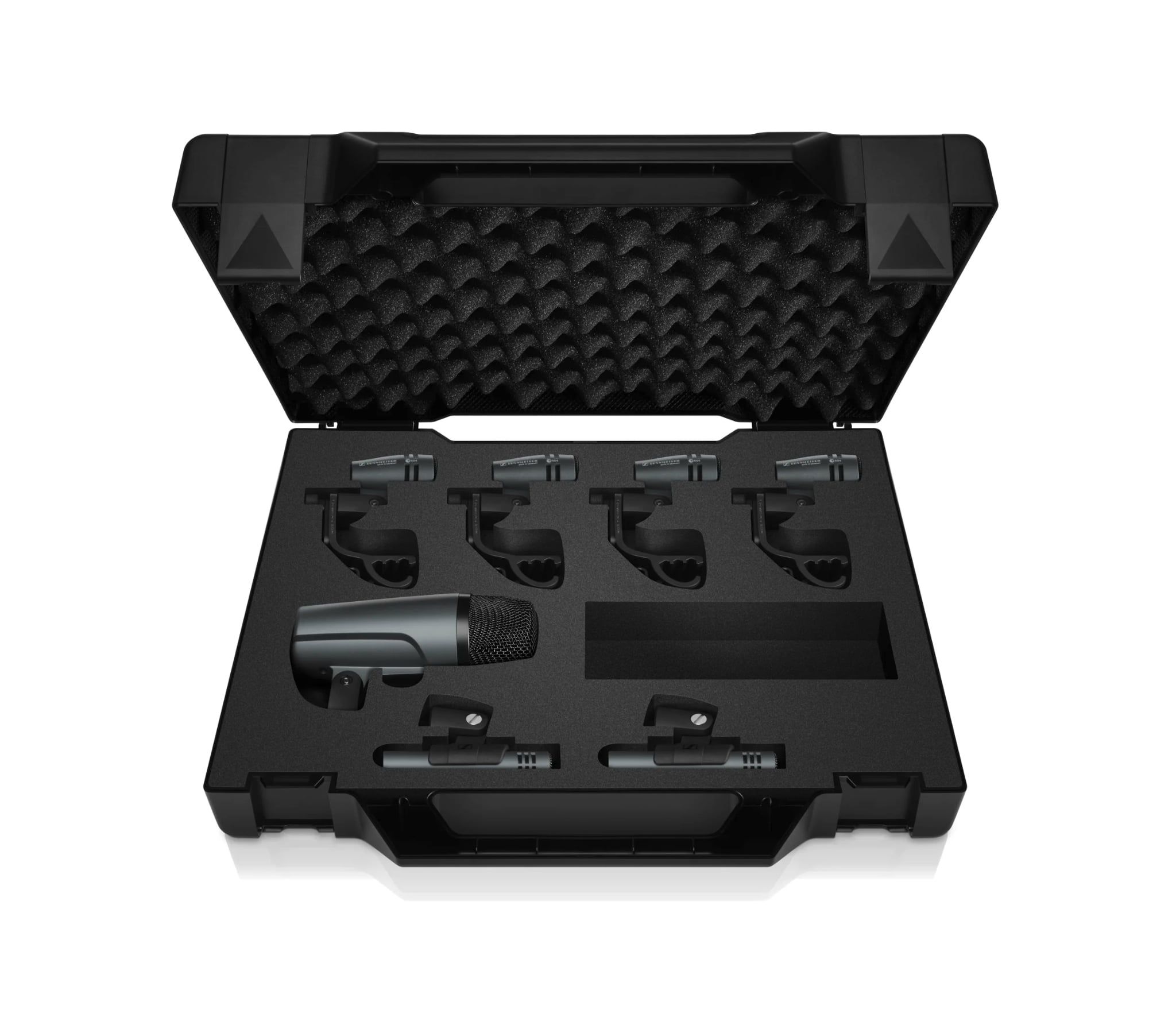

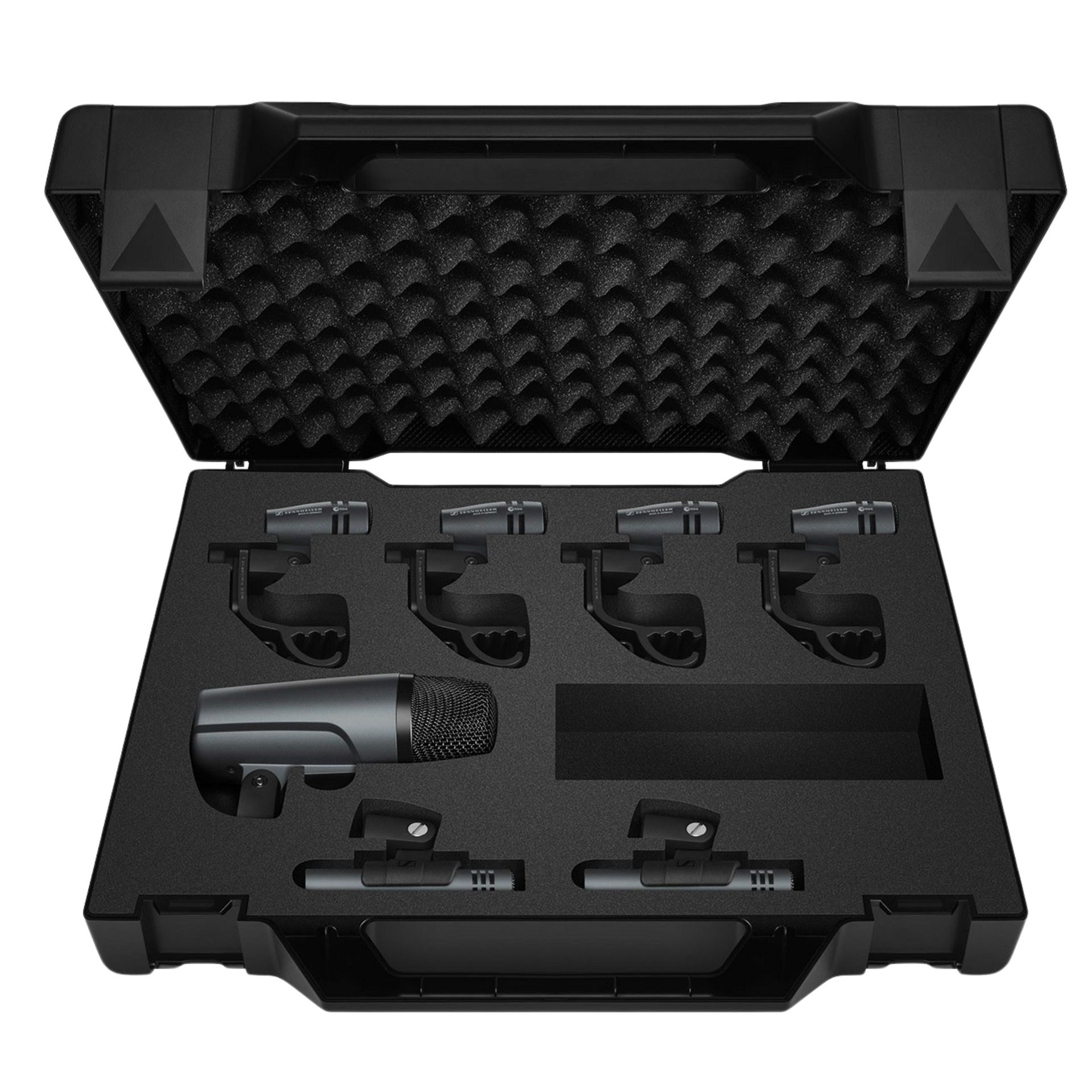

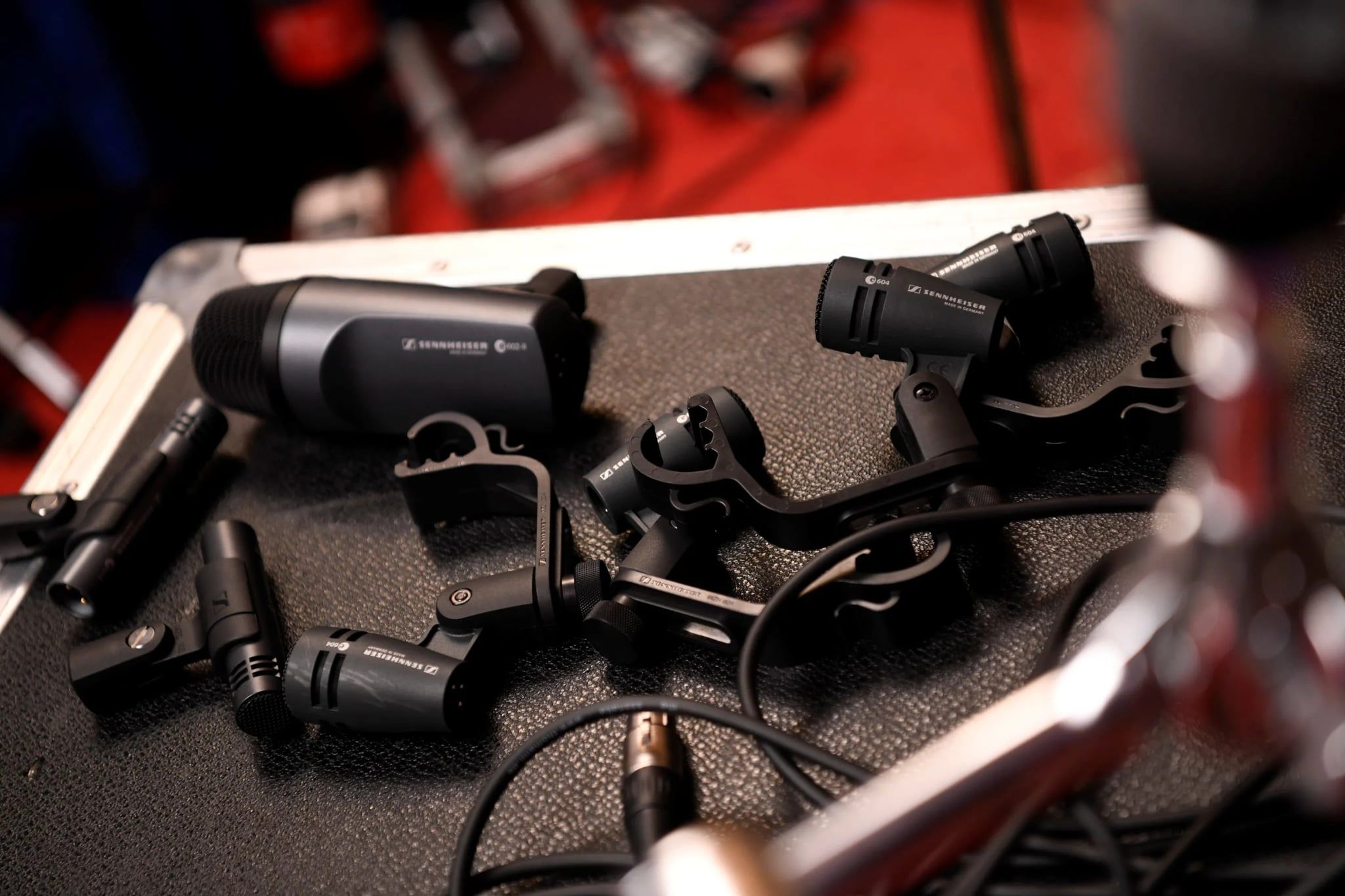

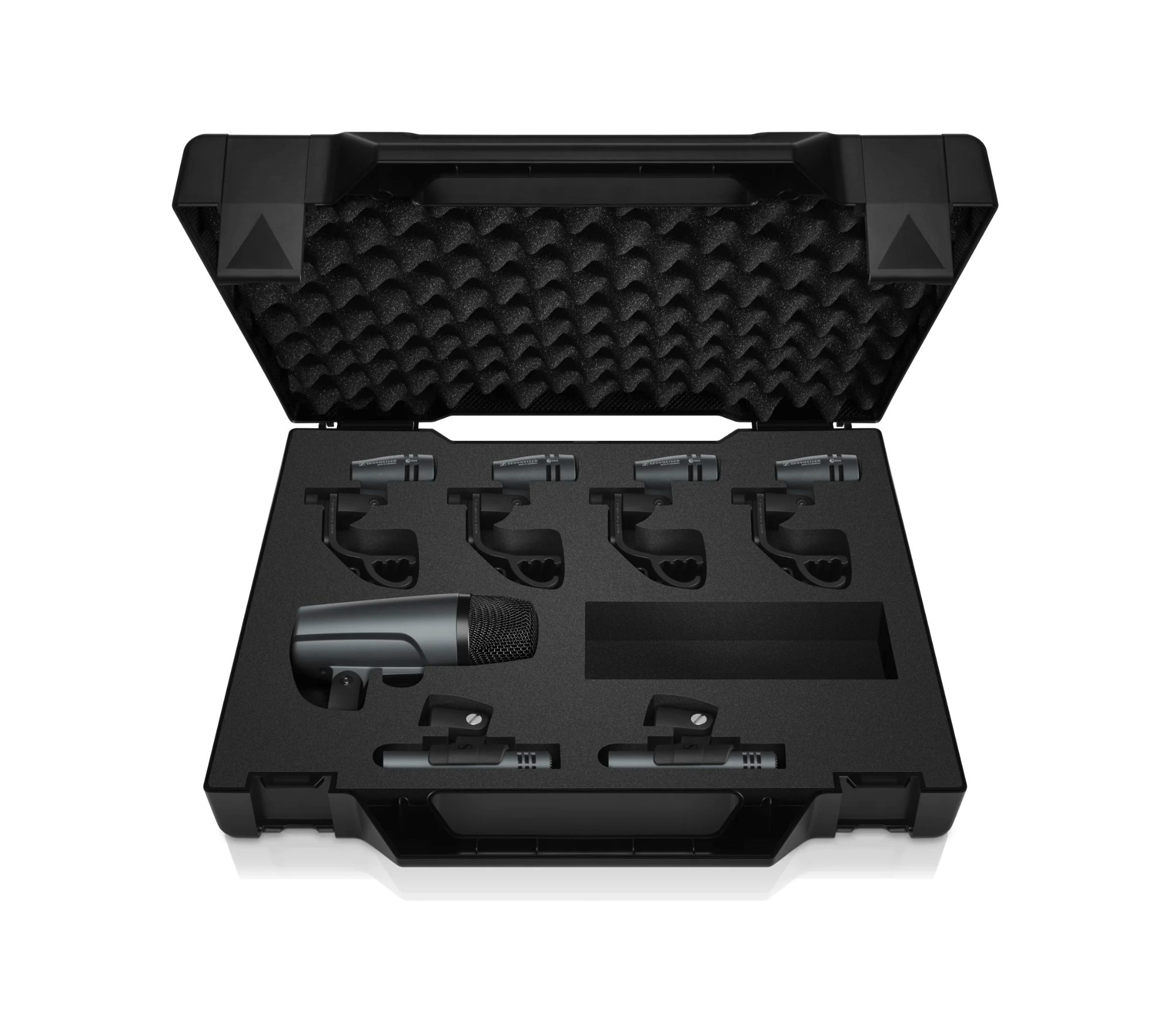

Sennheiser E 600 Series Drum Kit

Đặc điểm nổi bật

THÔNG SỐ KỸ THUẬT SENNHEISER E 600 SERIES DRUM KIT

Dimensions (e 614) Ø 20mm, L = 100mm

Weight (e 614) 93 g

Min. terminating impedance (e 614) 1000 Ω

Connector (e 614) XLR-3

Pick-up pattern (e 614) super-cardioid

Phantom powering (e 614) 12 – 52 V / 3 mA

Frequency response (e 614) 40 - 20000 Hz

Sensitivity in free field, no load (1kHz) (e 614) 3 mV/Pa = - 50dB (0 dB = 1 V/Pa)

Equivalent noise level (e 614) 24 dB(A)

Max. sound pressure level (e 614) 139 dB/SPL

Nominal impedance 50 Ω

Equivalent noise level weighted as per CCIR 468-3 (e 614) 35 dB

Transducer principle (e 614) pre-polarised condenser microphone

Dimensions (602 ii) Ø 60 x 153 mm

Frequency response (602 ii) 20 - 16000 Hz

Sensitivity in free field, no load (1kHz) (602 ii) 0,25 mV/Pa; (50 Hz) 0,9 mV/Pa

Connector (602 ii) XLR-3

Weight (602 ii) 318 g

Nominal impedance (602 ii) 350 Ω

Transducer principle (Microphone) (602 ii) dynamic

Pick-up pattern (602 ii) cardioid

Min. terminating impedance (602 ii) 1000 Ω

Dimensions (e 604) Ø 33 x 59 mm

Weight (e 604) 60 g

Nominal impedance (e 604) 350 Ω

Connector (e 604) XLR-3

Pick-up pattern (e 604) cardioid

Min. terminating impedance (e 604) 1000 Ω

Frequency response (Microphone) (e 604) 40 - 18000 Hz
