Thông số kỹ thuật

CONFIGURATION BALANCED DIFFERENTIAL

Balanced Differential

DIGITAL FILTER / DIGITAL-TO-ANALOG CONVERTERS

Fully asynchronous 32-bit

FREQUENCY RESPONSE (FULL RANGE)

2Hz - 100kHz +0/-3dB

THD @1KHZ, 0DBFS (A-WEIGHTED)

0.001%

INTERMODULATION DISTORTION

0.002%

DYNAMIC RANGE

120dB

SIGNAL-TO-NOISE RATIO

118dB @ full output

CHANNEL SEPARATION

116dB

INTRINSIC JITTER

1 picosecond RMS 32-bit

ANALOG OUTPUTS – BALANCED

1 pair XLR – Fixed Level

ANALOG OUTPUTS – SINGLE ENDED

1 pair RCA – Fixed Level

ANALOG OUTPUT @ 0DBFS - XLR / RCA

2.0 Volts – Fixed Level

ANALOG OUTPUT IMPEDANCE - XLR / RCA

100Ω

DSD DATA RATES VIA USB

(2.8224MHz), Double (5.6448MHz) & Quadruple (11.2896)

DSD SAMPLE RATES VIA USB

DSD 64, DSD 128 & DSD256

DSD VIA MIND DSD 64

DSD 64 (2.8224MHz)

PCM BIT-DEPTH RANGE

16 - 32 bits (32-bit via USB only)

PCM SAMPLING FREQUENCY RATES

44.1 - 384kHz (352.8 & 384kHz via USB only)

DIGITAL INPUTS (7)

1 x AES/EBU , 2 x S/PDIF, 2 x TosLink, 1 x USB, 1 x Bluetooth

REMOTE CONTROL

Full-Function CRM-2

POWER CONSUMPTION @ IDLE

10 watts

AC POWER REQUIREMENTS

120V / 60Hz or 240V / 50Hz

SHIPPING WEIGHT

16 lbs / 7.5 Kgs

DIMENSIONS (W X H X D, INCHES / CM)

16.9 x 3.4 x 13.1 / 42.9 x 8.6 x 33.3

Mã sản phẩm: 117383
Tình trạng: Còn trong kho

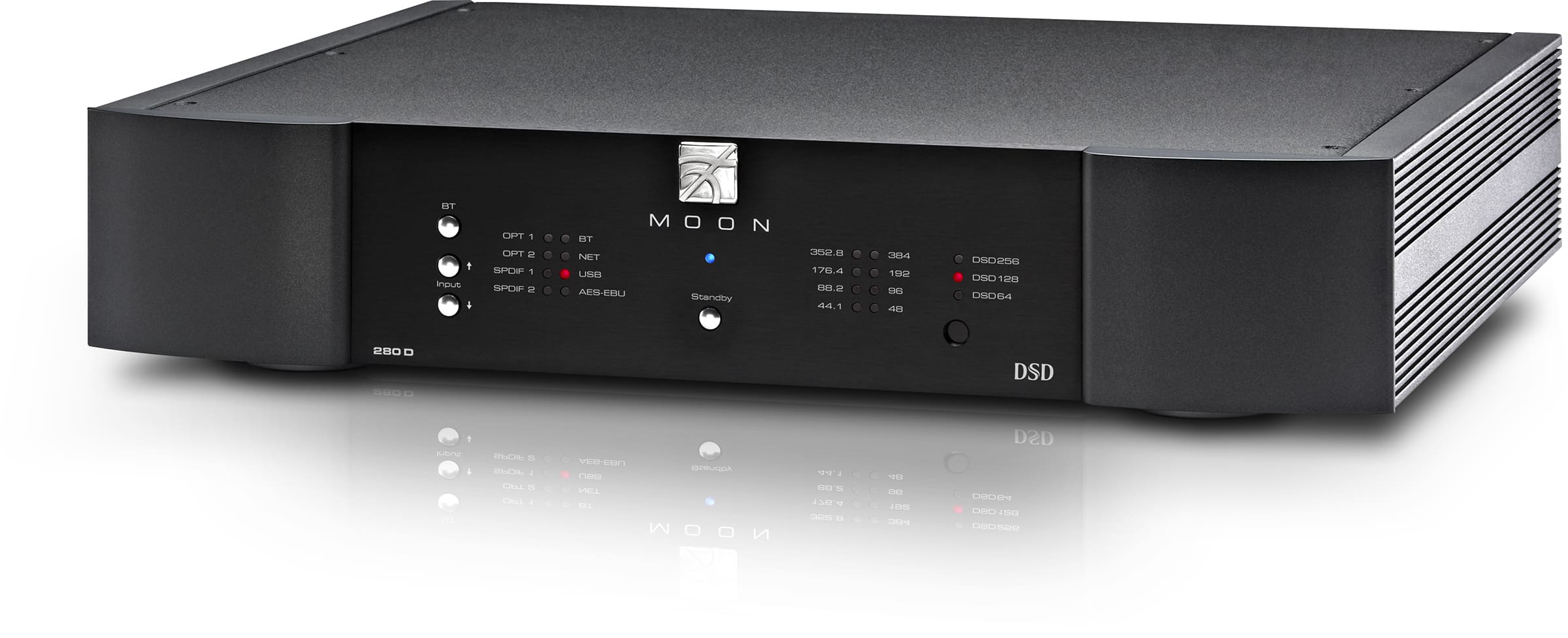

Dac Moon Neo 280D Mind

77,550,000đ
- +
